ARAG 4-Section Manual Control Unit Kit (UCM 4 Equivalent)

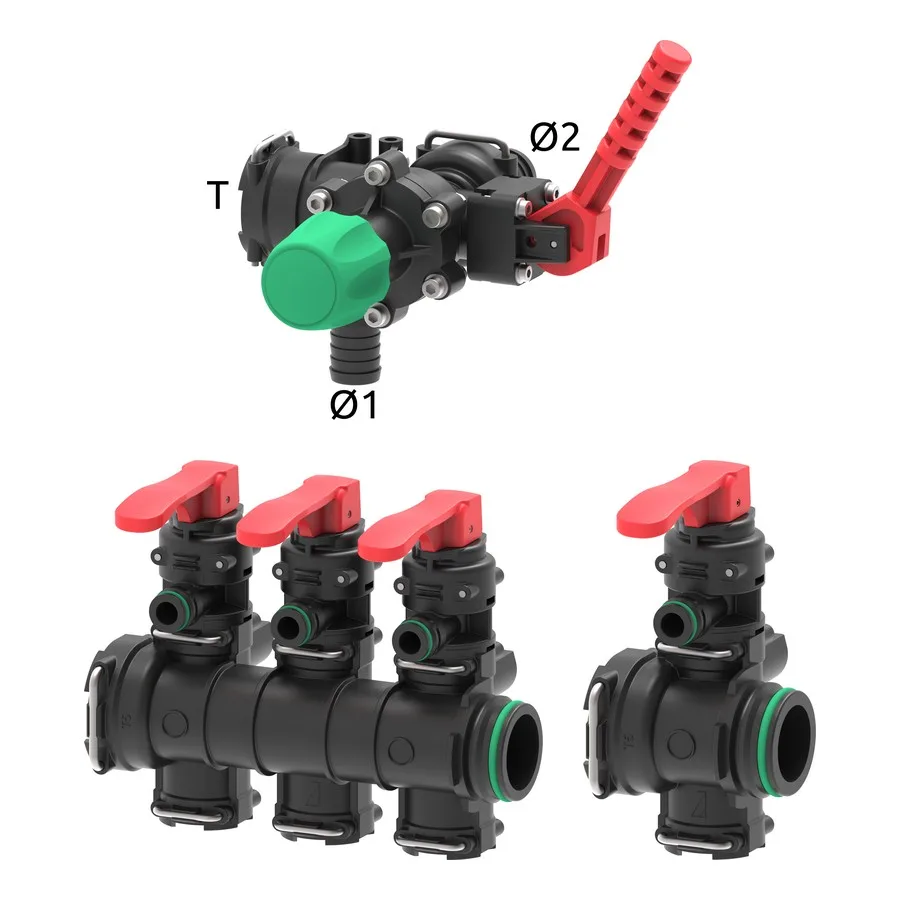

ARAG control unit kit with a 471T manual main valve, 463T 3+1 section valves, T5 line filter and 0–25 bar gauge; a direct alternative to the UCM 4.
ARAG 4-Section Manual Control Unit Kit General Features
-A kit of ARAG components for crop sprayers that can be used in place of the Annovi Reverberi UCM 4 control unit.
-471T manual main control valve: max. 20 bar, 150 l/min, adjustable maximum pressure valve. Fiberglass-reinforced Nylon® body, internal parts in Delrin® and AISI 303 stainless steel, Viton® gaskets.
-463T series manual section valves (3-way + 1-way = 4 sections) with metered by-pass to keep pressure constant when a section is closed.
-Self-cleaning T5 line filter (Inox 50 mesh) and 0–25 bar glycerine pressure gauge.
-ARAG T5/T3 fork coupling system for quick assembly and easy maintenance.
NOTE: All kit components are listed in the Kit contents table below.
Specifications
| Max. Pressure (bar) | 20 |
|---|---|
| Max. Flow (l/min) | 150 |
| Number of Outlets | 4 |
| Coupling Type (Fork) | T5 inlet / T3 outlet |
| Filter | Inox 50 mesh, self-cleaning |
| Pressure Gauge | 0 ÷ 25 bar, Ø63 mm |
Kit contents
| TA 471T202 | Manual main control valve 471 (T5) — 150 l/min, max. 20 bar, adjustable maximum pressure valve |
|---|---|
| TA 463T063 | 3-way manual section valve 463T — Metered by-pass, 50 l/min per section, max. 20 bar, inlet T5 / outlet T3 |
| TA 463T061 | 1-way manual section valve 463T — Metered by-pass, 50 l/min, max. 20 bar, inlet T5 / outlet T3 |
| TA 32621M3 | Arag Electrovalve Self-Cleaning Line Filter — Self-cleaning, T5, 210–280 l/min, Inox 50 mesh |
| TA 910025 | Glycerine pressure gauge 0–25 bar — Ø63 mm, side connection |
| TA 219350 | Pressure gauge adapter T5 male — G 1/4" female |
| TA 1091313 | Straight Hose Fitting with Male Connection — Section outlets, T3, Ø13 mm |
| TA G11058V | O - Ring — O-ring for T3 hose fitting, Viton® |
| TA 010001 | Fork clip T1 — For metered by-pass/cap |
| TA 010003 | Fork clip T3 |
| TA 010005 | Fork clip T5 |
| TA 010006 | Fork clip T6 |
